SPECS
_
45 kVA / 38.22 kWp System
45 kVA / 38.22 kWp System
45 kVA / 38.22 kWp System
System Specifications:

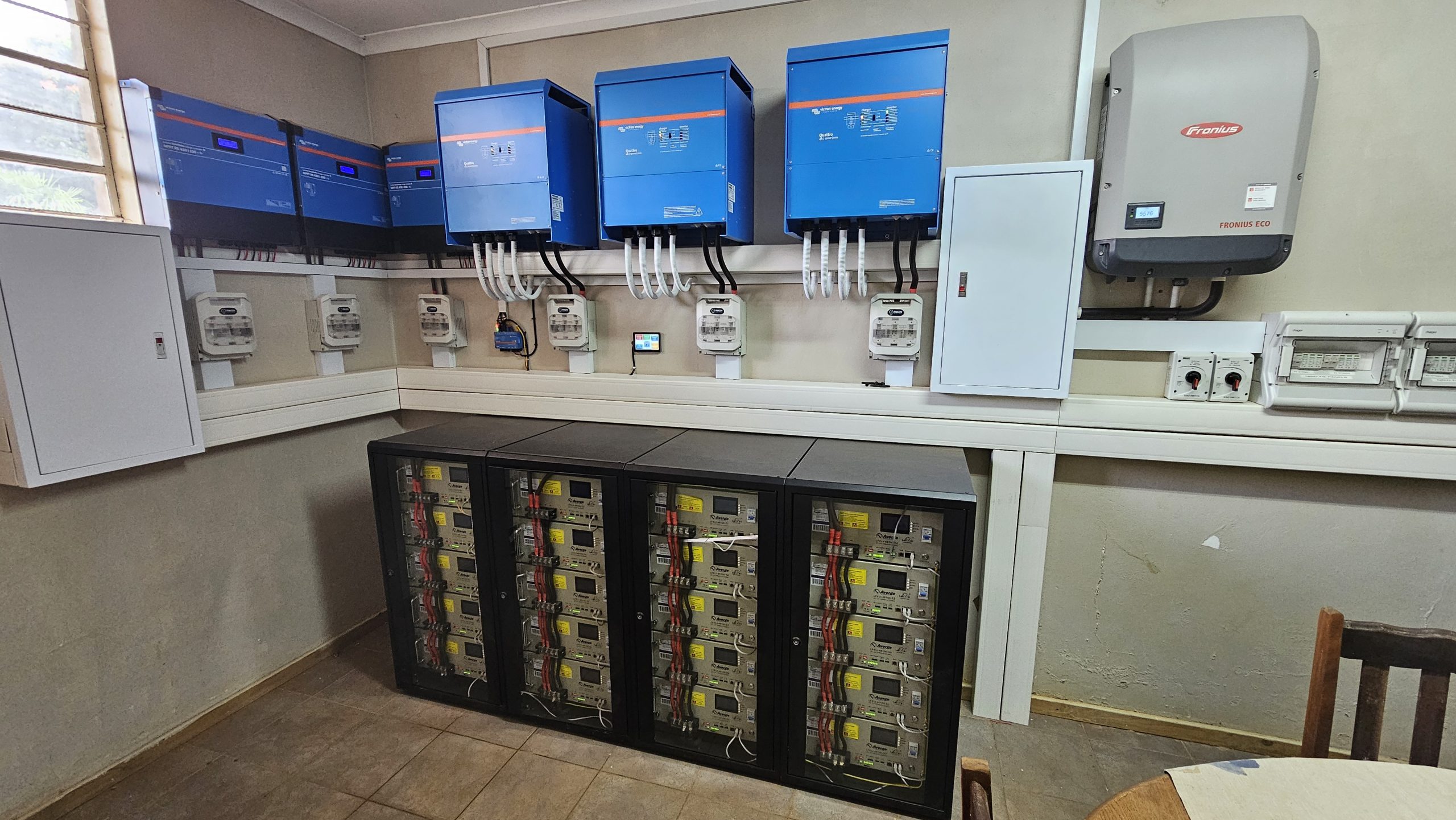

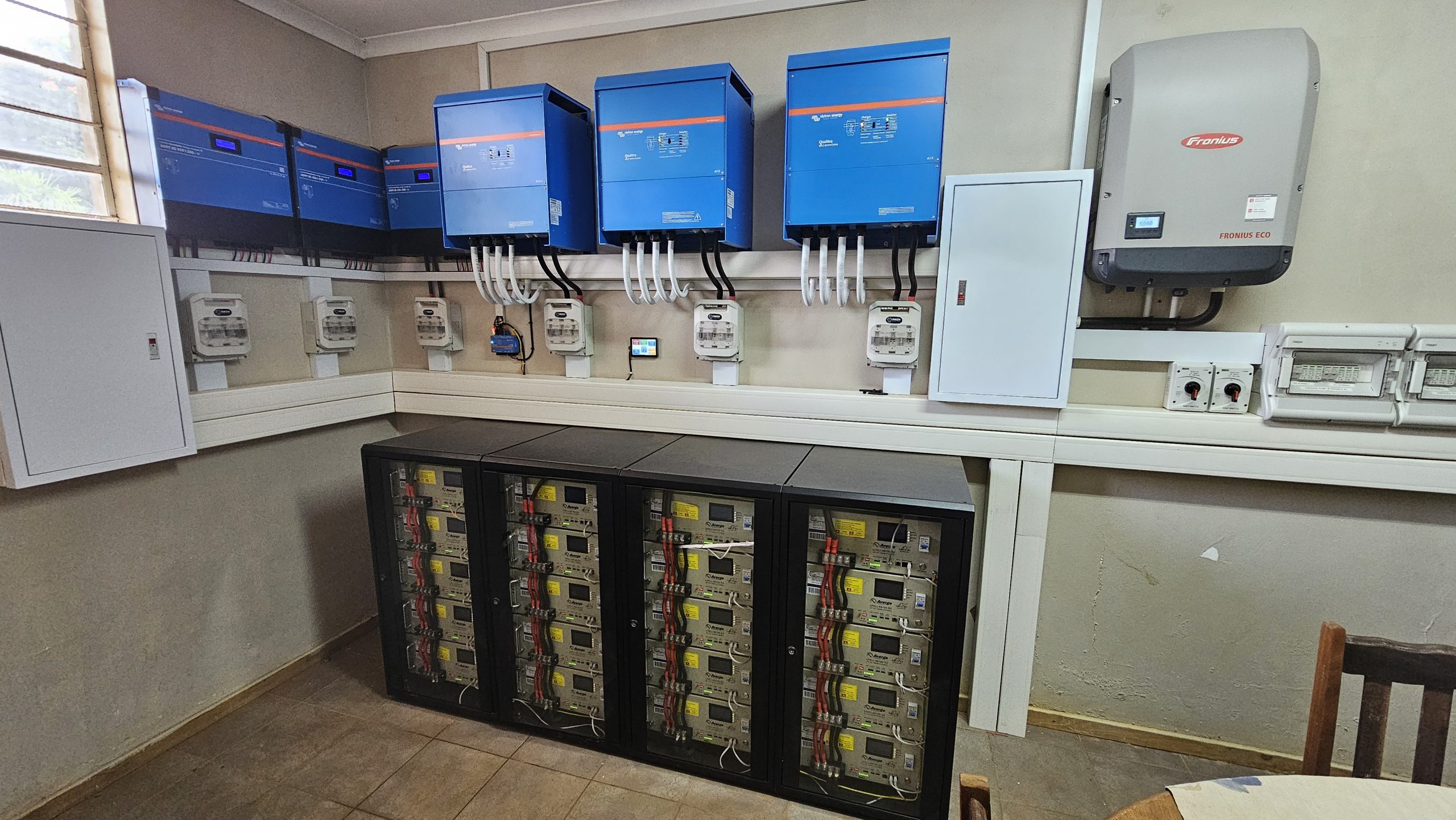

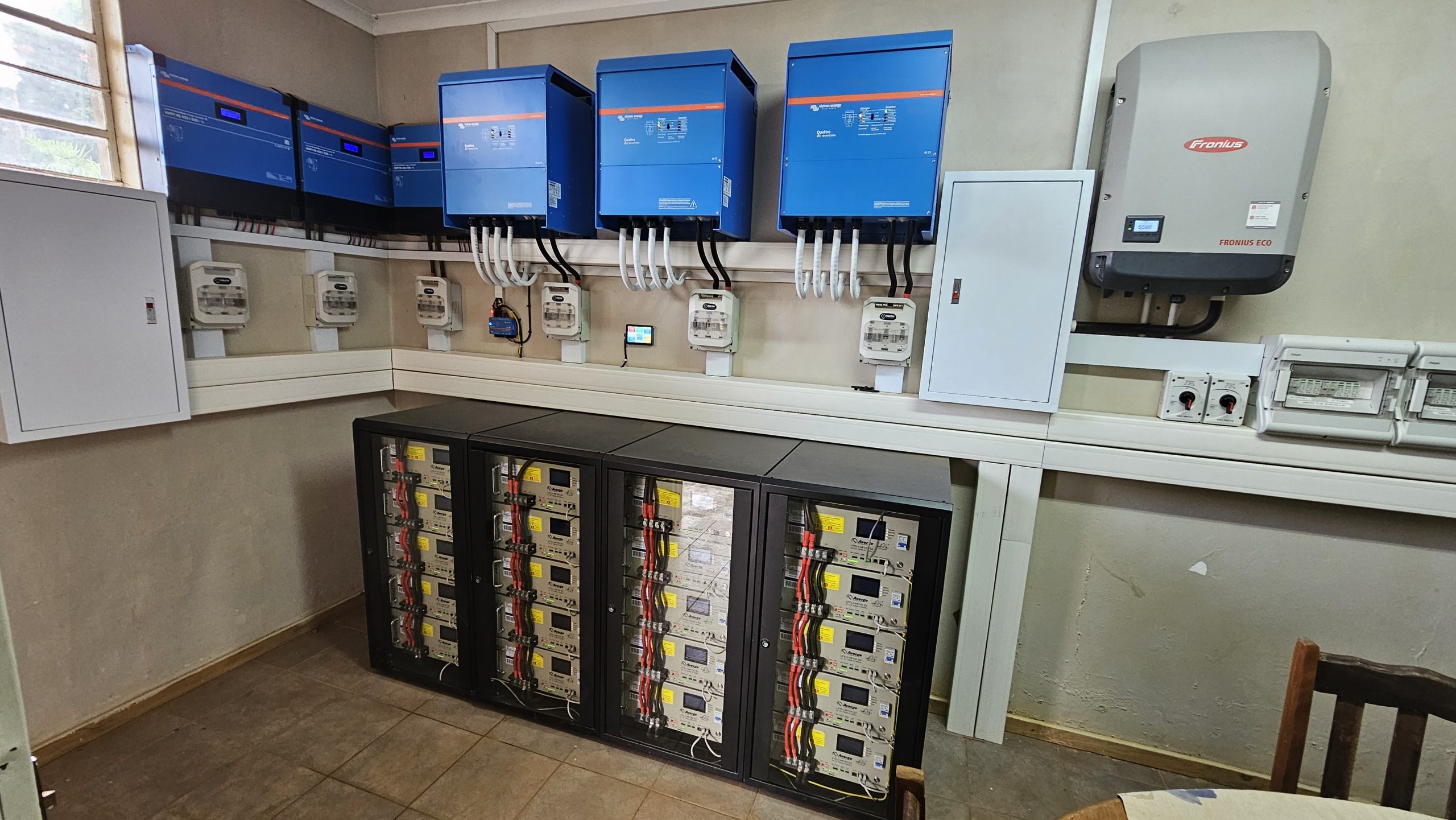

- Inverter: 3 x 15kva Victron inverters (36kw 3-phase) + 3 x 450/200 Mppt
- Monitoring: 1 x Victron Cerbo with GX50 Touch screen
- AC Inverter: 1 x Fronius 27kw AC inverter

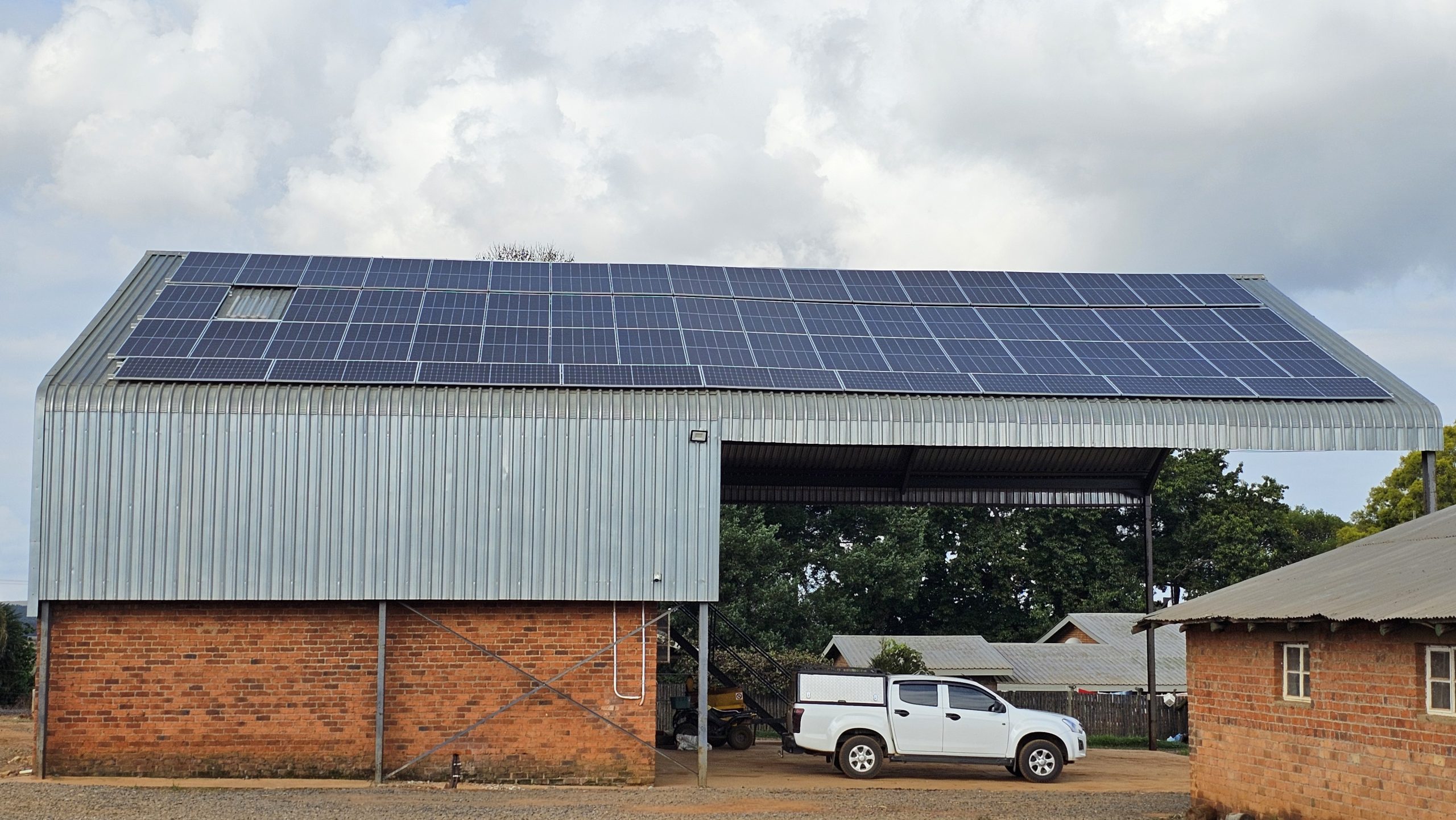

- Solar Panels: 123 x 550w JA solar panels (67.65kwp) with aluminium frames
- Batteries: 20 x 5.1kwh Averge Lithium phosphate battery (102kwh)
_
System Performance:
The system is a 36kw three phase grid interactive system with 67.65kwp installed solar The solar can generate 304kwh per day on average or 9120kwh per month Standby battery capacity is 91.8kwh with suggested usage of 61.2kwhSystem Gaurantees:
- Averge Lithium Phosphate has a 10 year guarantee
- Victron and Fronius products has a 5 year guarantee
- Solar panels has a 10 year guarantee with 25 year 80% production guarantee
